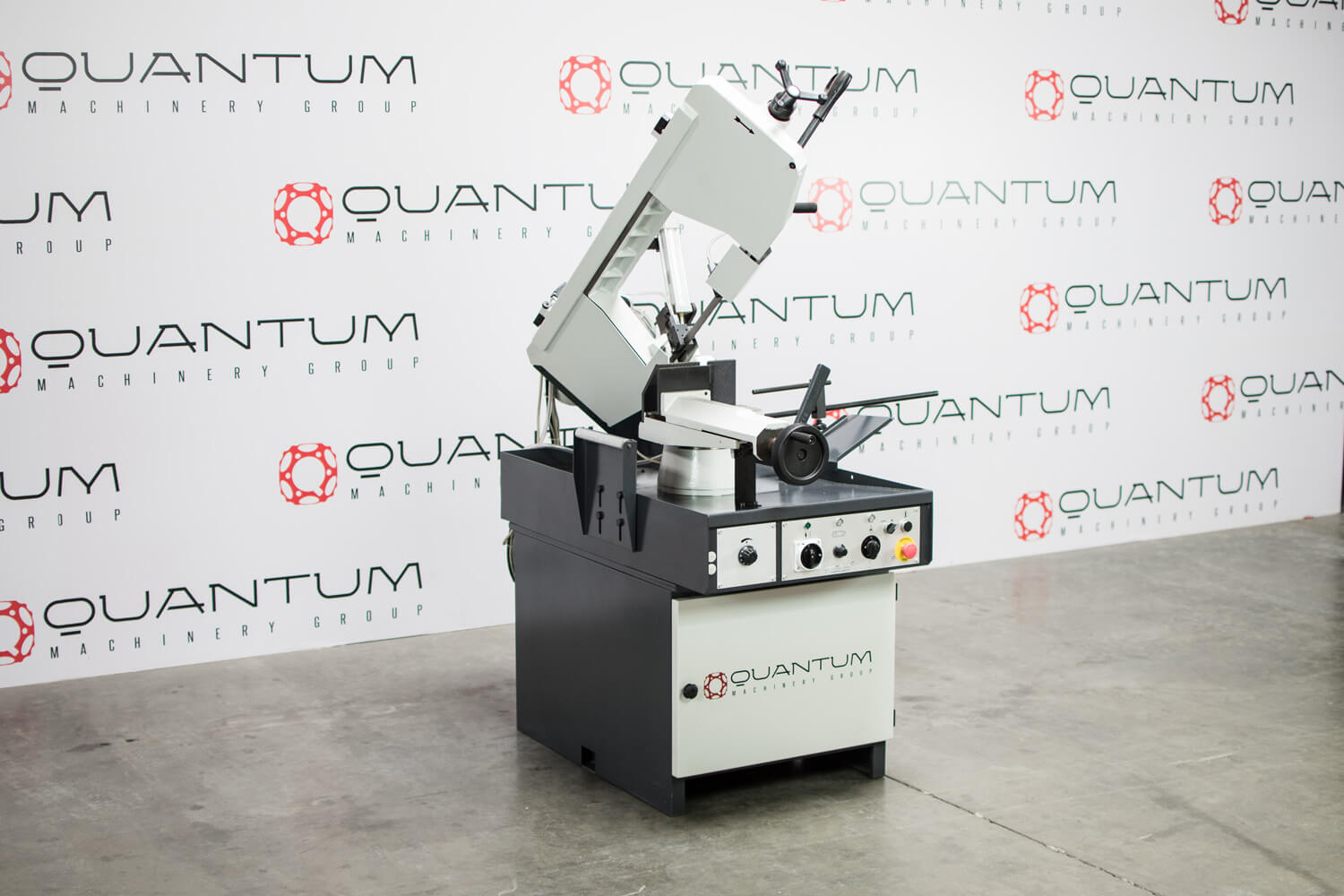

S 320 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (9" Round Tube Capacity)
S 320 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (9" Round Tube Capacity)

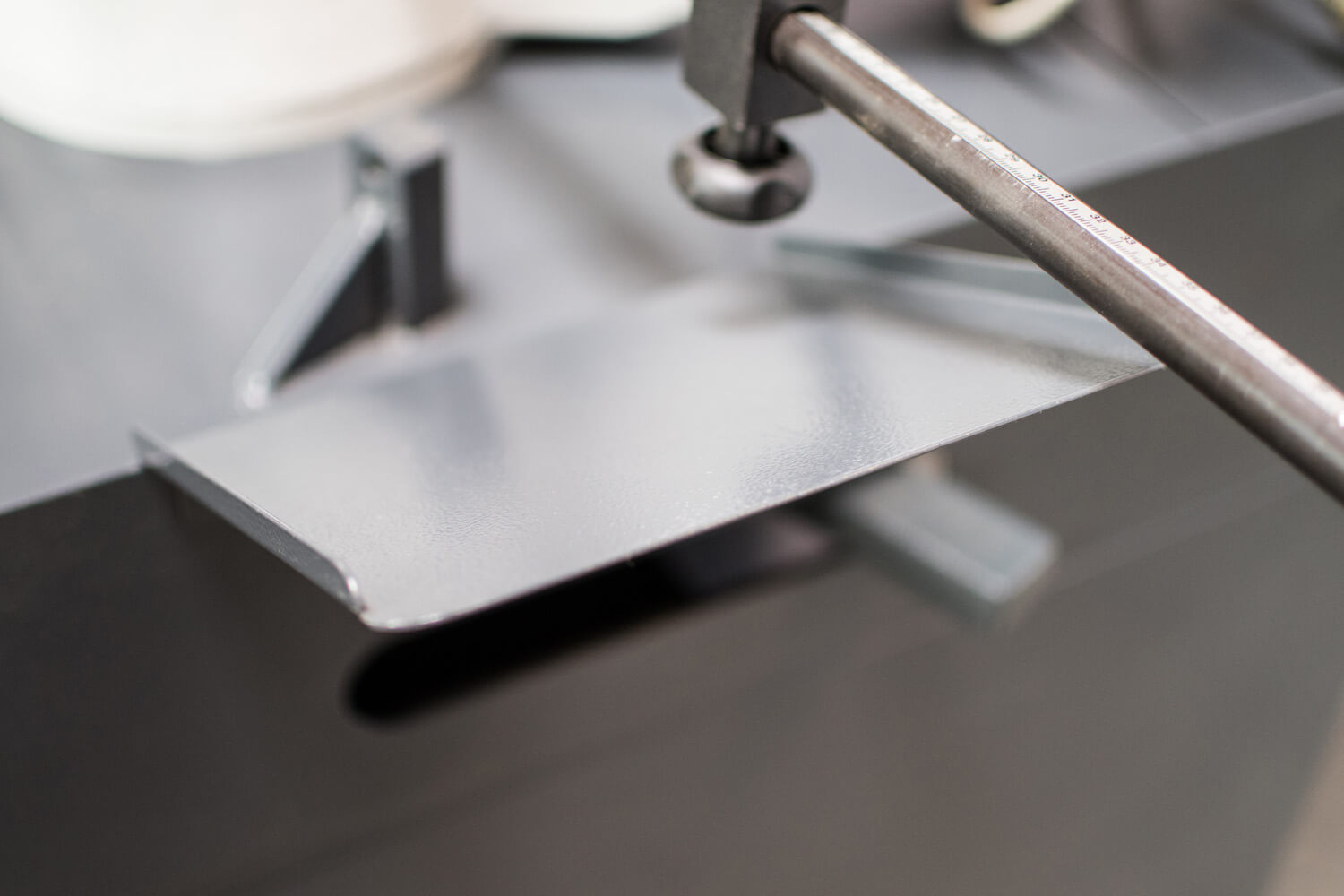

Includes Pedestal/Stand, 1 Blade and Entry/Exit Side Support Brackets
Ready to place an order, or do you have any questions?
Call us at (704) 703-9400
The essential basic characteristics of our Quantum S-320-CSO Band Saw (such as the rigidity of the blade support, the flywheel dimensioning, band saw blade guides, and band stretching) have been extensively studied thoroughly in order to avoid yielding of the band - ultimately increasing the S-320-CSO’s durability above all other band saws of this size in the marketplace, and assists to improve the linearity of the cuts, as well as the cutting time.
QUANTUM MACC S-320-CSO BAND SAW CUTTING CAPACITIES AND SPECIFICATIONS:
Motor Power: 0.75 - 1.1 kW
Cutting Thickness: 1.2 mm (.047")
Band Saw Weight: 750 lbs. (340 kg)
Adjustable Stop for cuts of the same size.
Maximum Vice Opening of 315 mm (12.40")
Vice with Device for Swift-Locking for Quick-Vice Approach.
Cutting Range: 90° Straight Cut up to 60° Right-Angled Cut.
This saw can run at 2 different speeds (35-71 Feet per Minute)
Blade Size Dimensions: 2825 x 27 x 0.9 mm (111.2" x 1.06" x 0.035")
0.06 kW Power-Driven Pump for band cooling and 24V Low-Tension Plant.
Band Saw machine with Automatic Bow/Head-Descent, controlled by a hydraulic circuit upon cutting. The “Bar-Feeding”, Vice Closure and Head Return are manually operated.
Equipped with the Variable Speed Inverter for Band Saw Blade Speeds.
Italian Made Band Saw - Parts for our Band Saws are stocked in the U.S.A. at our Quantum Machinery headquarters.
Vertical rotation on bolt with adjustable tapered bearings without backlash.
Strong band guides with tight stress-raiser bearings and adjustable widia tips.
High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw.
Appropriately Dimensioned Flywheels with Accident-Preventing Devices on the Flywheel Casing, on the Control Handle, and on the Blade.
S-320-CSO Band Saw Overall Dimensions: 73.6" Height x 71.6" Length x 29" Width without Accessories / 44.5" Width with Accessories
(1900 x 1870 x 735mm Width without Accessories / 1130mm Width with Accessories)
Round Tube Cutting Capacities:
Round Tube Cutting at 90° (Straight Cut): 9"
Round Tube Cutting at 45° Right: 7-7/8"
Round Tube Cutting at 60° Right: 5"
Square Tube Cutting Capacities:
Square Tube Cutting at 90° (Straight Cut): 8-1/2"
Square Tube Cutting at 45° Right: 7"
Square Tube Cutting at 60° Right: 4-5/8"
Rectangular Tube Cutting Capacities:
Rectangular Tube Cutting at 90° (Straight Cut): 6-5/8" x 11-3/4"
Rectangular Tube Cutting at 45° Right: 7" x 9"
Rectangular Tube Cutting at 60° Right: 4-1/4" x 5"
