NEW 300 EDV: 12" Manual Cold Saw (3-1/2" Round Tube Capacity)
NEW 300 EDV: 12" Manual Cold Saw (3-1/2" Round Tube Capacity)
$4,675
Ready to place an order, or do you have any questions? Call us at (704)703-9400

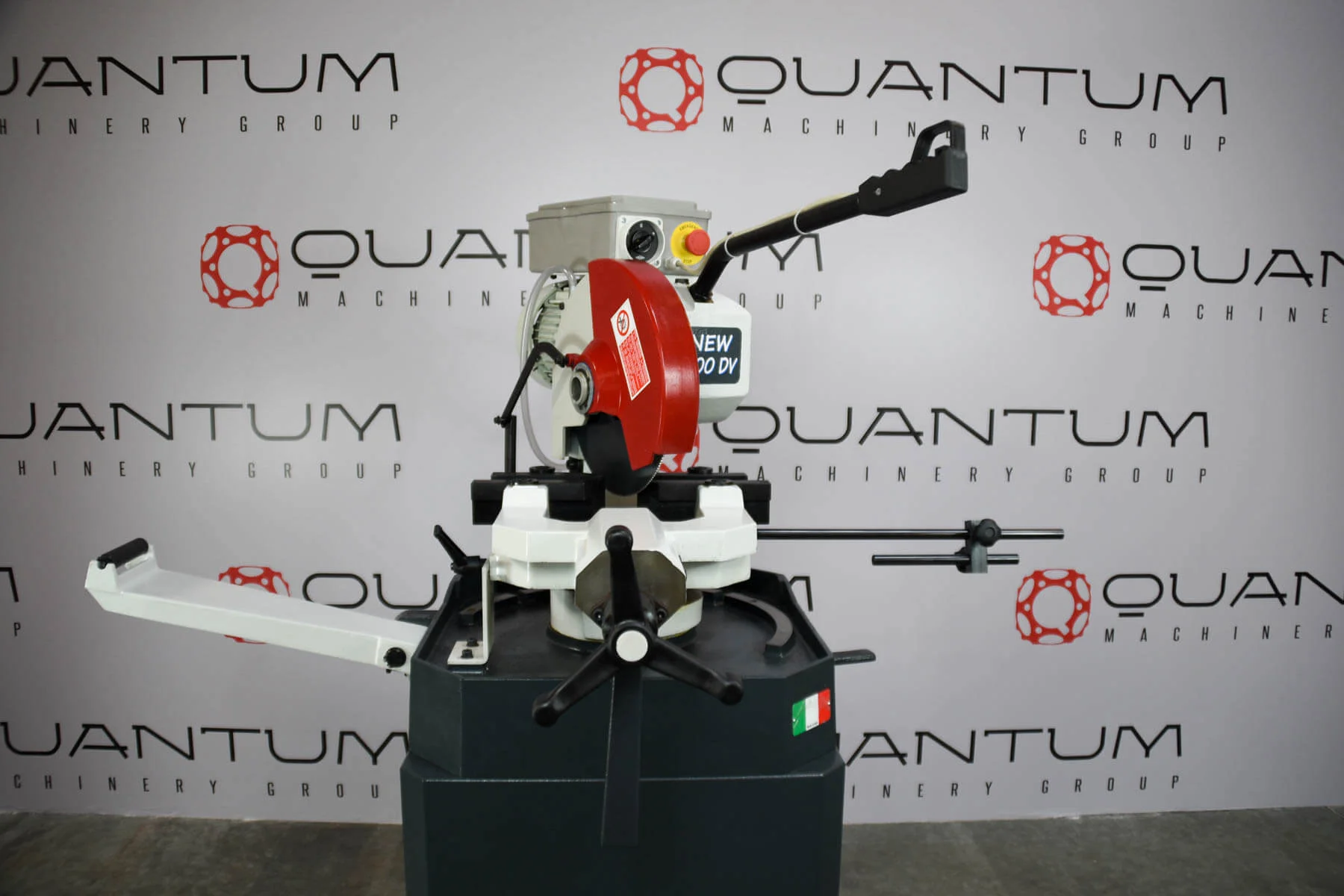

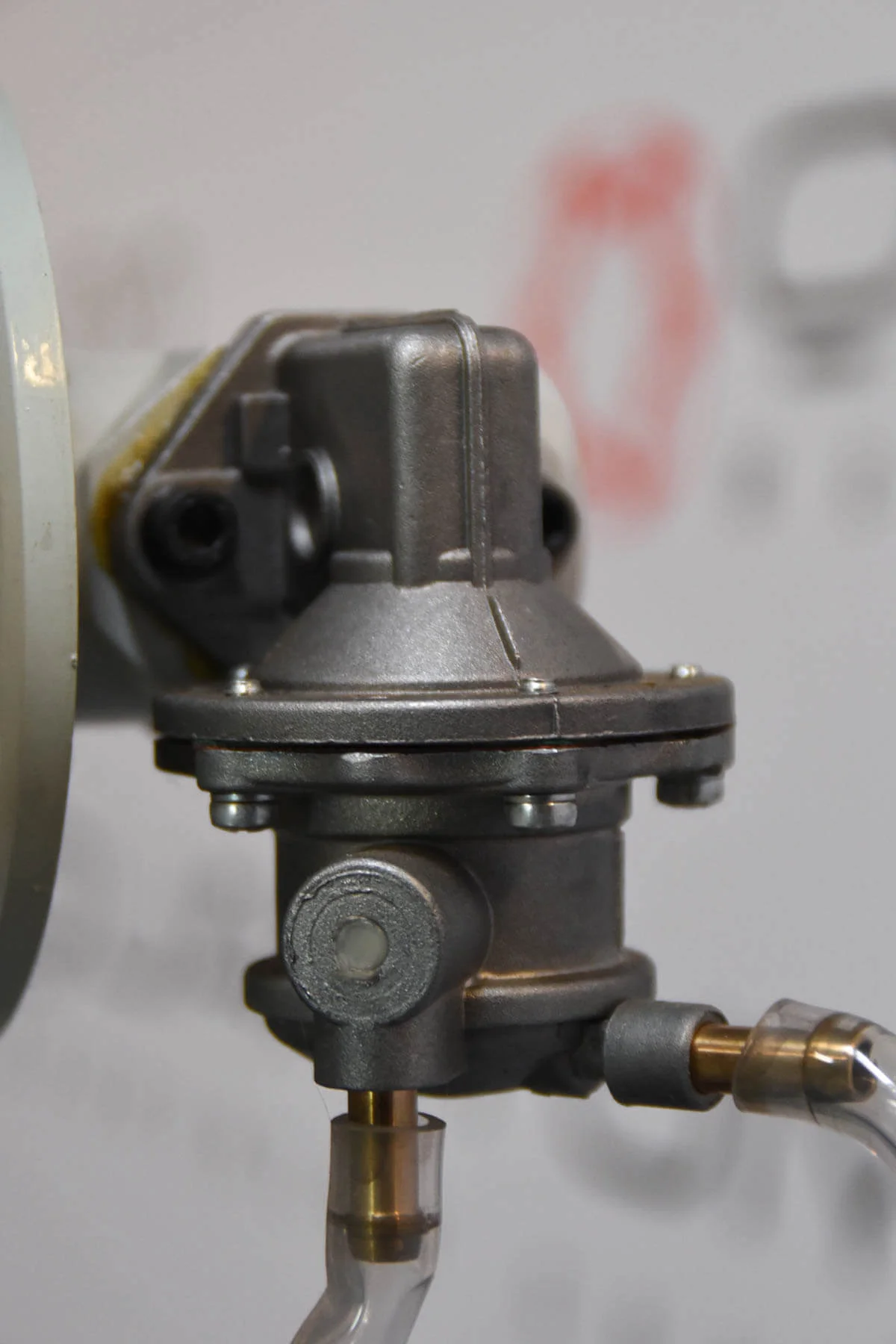

The Quantum NEW 300 EDV Manual (Pivot-Style) Cold Saw has the capability of moving the head 45 degrees left and 45 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and Incorporated Recirculating Mechanical Coolant System (Coolant Filter). The NEW 300 EDV is equipped with a double-vice and counter-vice that comes complete with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal. This NEW 300 EDV will be equipped with a 300mm Quantum Blade.
Weight: 450 lbs.
Max Vice Opening: 4.7"
Overall Dimensions: 40"W x 58"H x 45"L
2 Speed Options: 40 R.P.M. and 80 R.P.M.
Blade Size Used: 300mm x 32mm x 2.5mm Thick
(12" x 1.25" x 0.10" Thick)
NEW 300 EDV Cutting Capacities and Specifications:

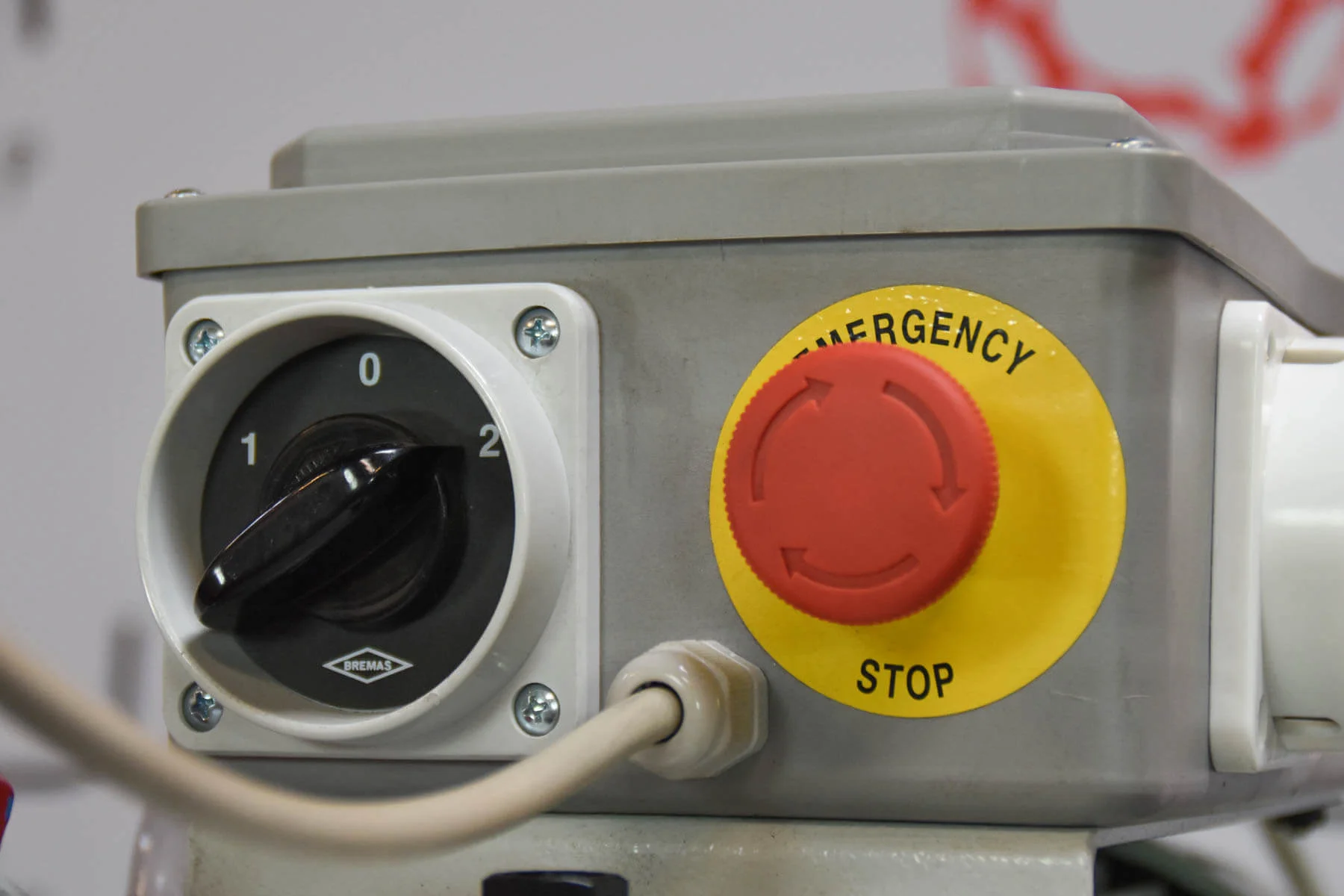

Trigger Switch Operation.

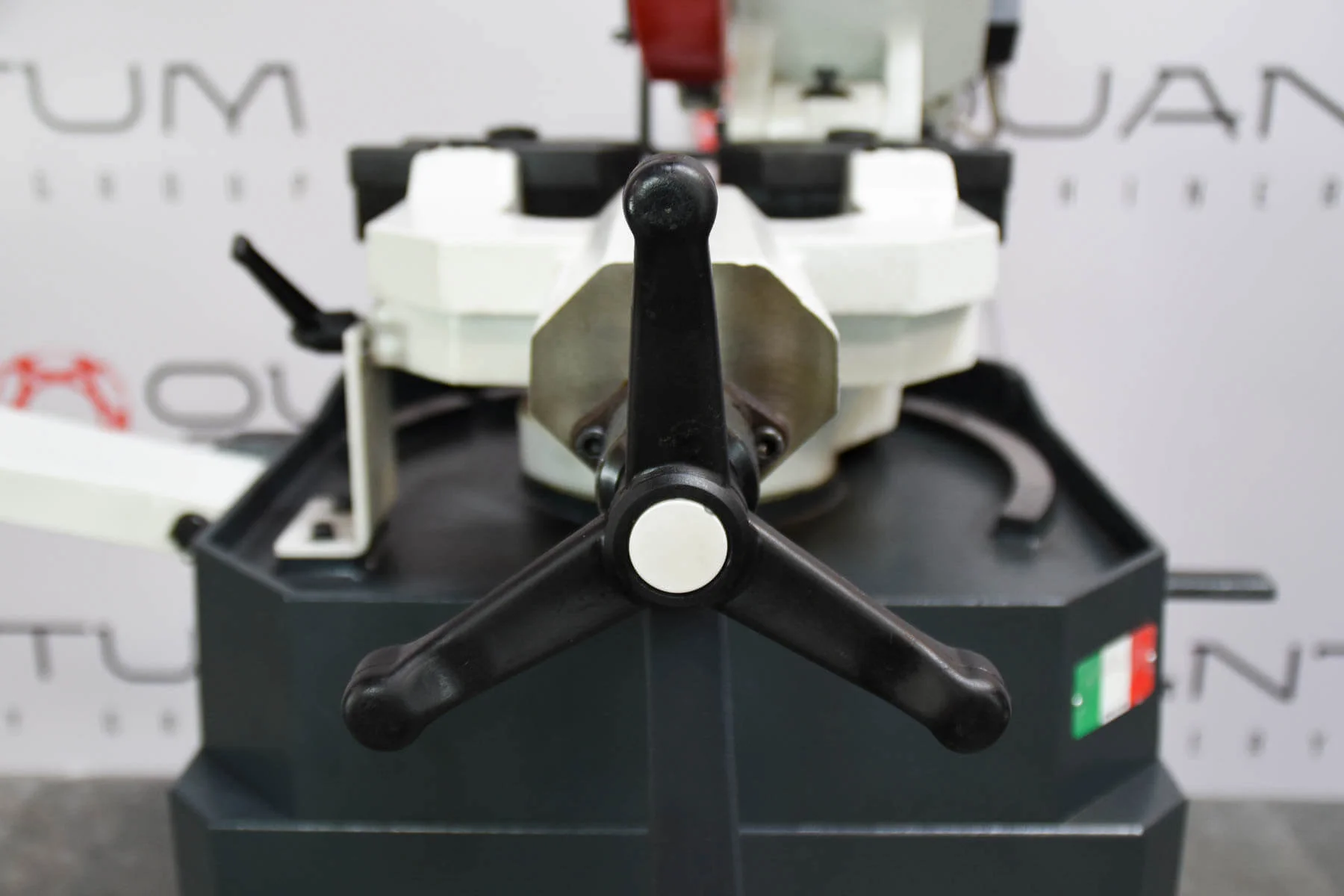

Sliding Quick Locking Double-Vice for Longitudinal Cutting.
Comes complete with blade.
Swivel Head 45° Left & Right.
Italian Made = Supreme Quality.
Jet separation system to keep the blade oiled.
Include Bar Stop, Service Tools and Manual.
Adjustable material stop for Repetitive Production.
Round Tube Cutting at 90 Degrees: 3-1/2"
Round Tube Cutting at 45 Degrees: 3-1/8"
Square Tube Cutting at 90 Degrees: 3-1/8"
Square Tube Cutting at 45 Degrees: 2-3/4"
Solid Round Cutting at 90 Degrees: 2-1/8"
Solid Round Cutting at 45 Degrees: 2"
Rectangular Tube Cutting at 90 Degrees: 2-3/4"H x 4-1/2"W
Rectangular Tube Cutting at 45 Degrees: 2-3/4"H x 2-3/4"W
