MC200: NARGESA Roll Bender / Section and Pipe Bending Machine
MC200: NARGESA Roll Bender / Section and Pipe Bending Machine
Ready to place an order, or do you have any questions? Call us at (704) 703-9400
Price: $9,999

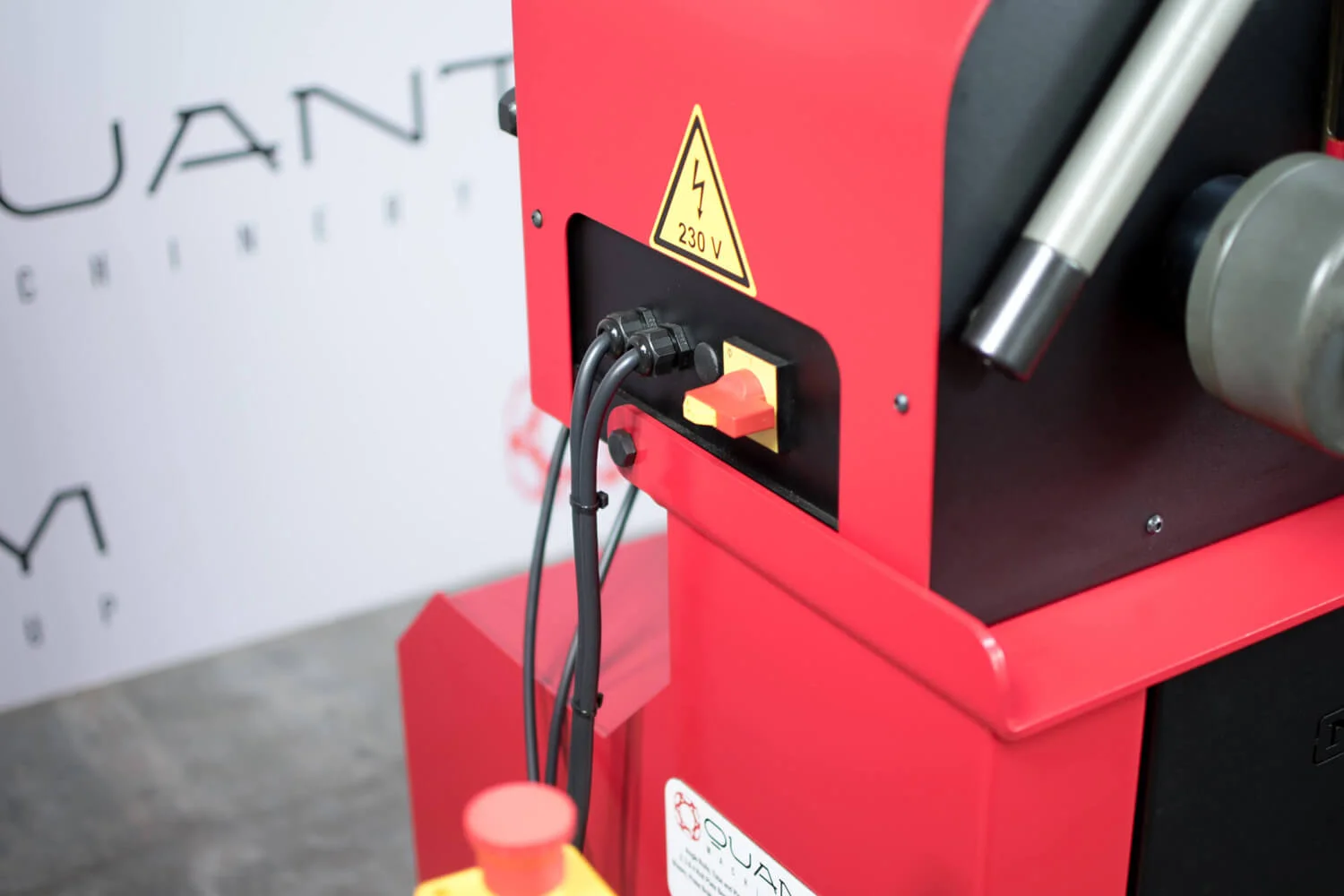

Electrical Options:
220V / 3PH / 60Hz
480V / 3PH / 60Hz
220V / 1PH / 60Hz

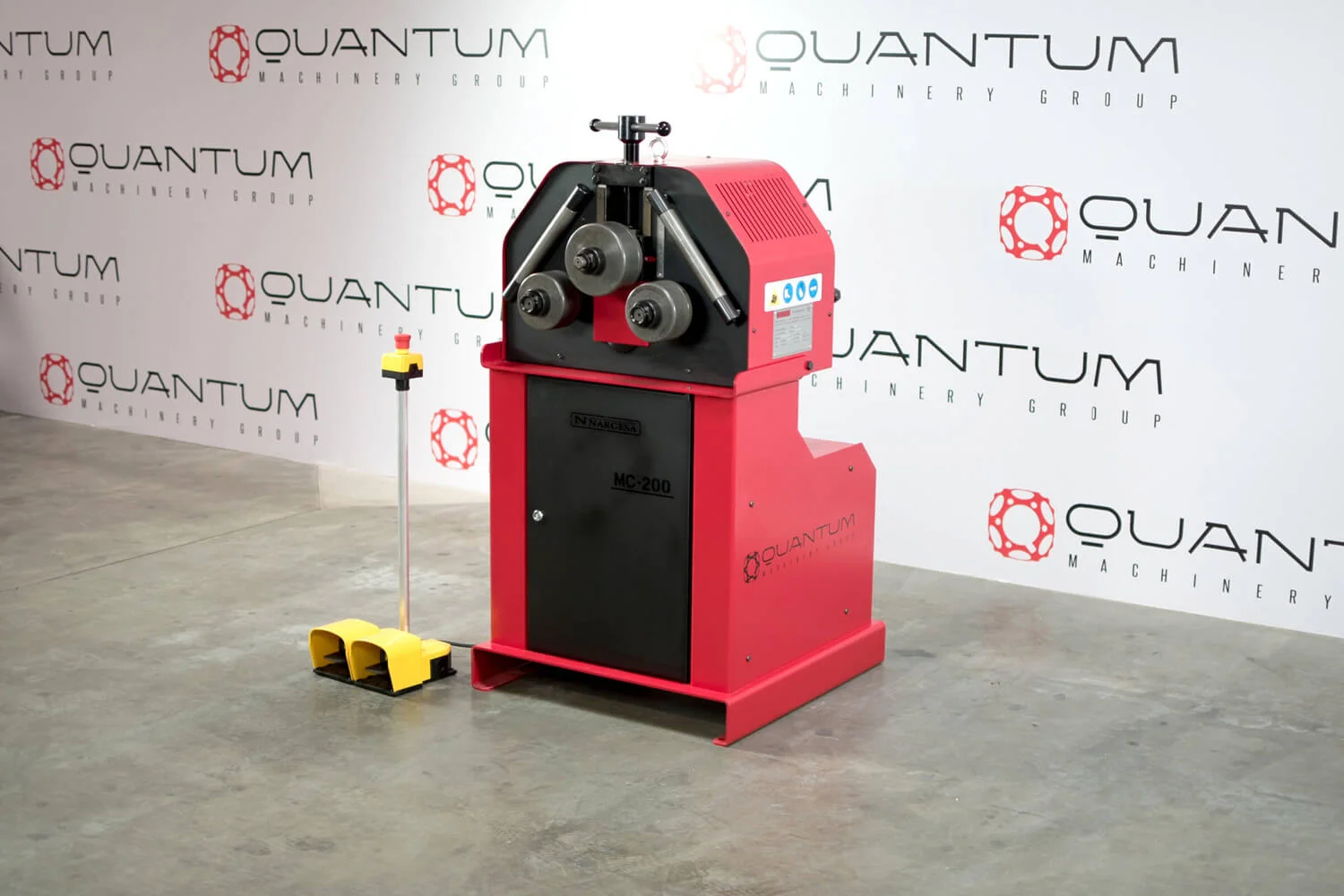

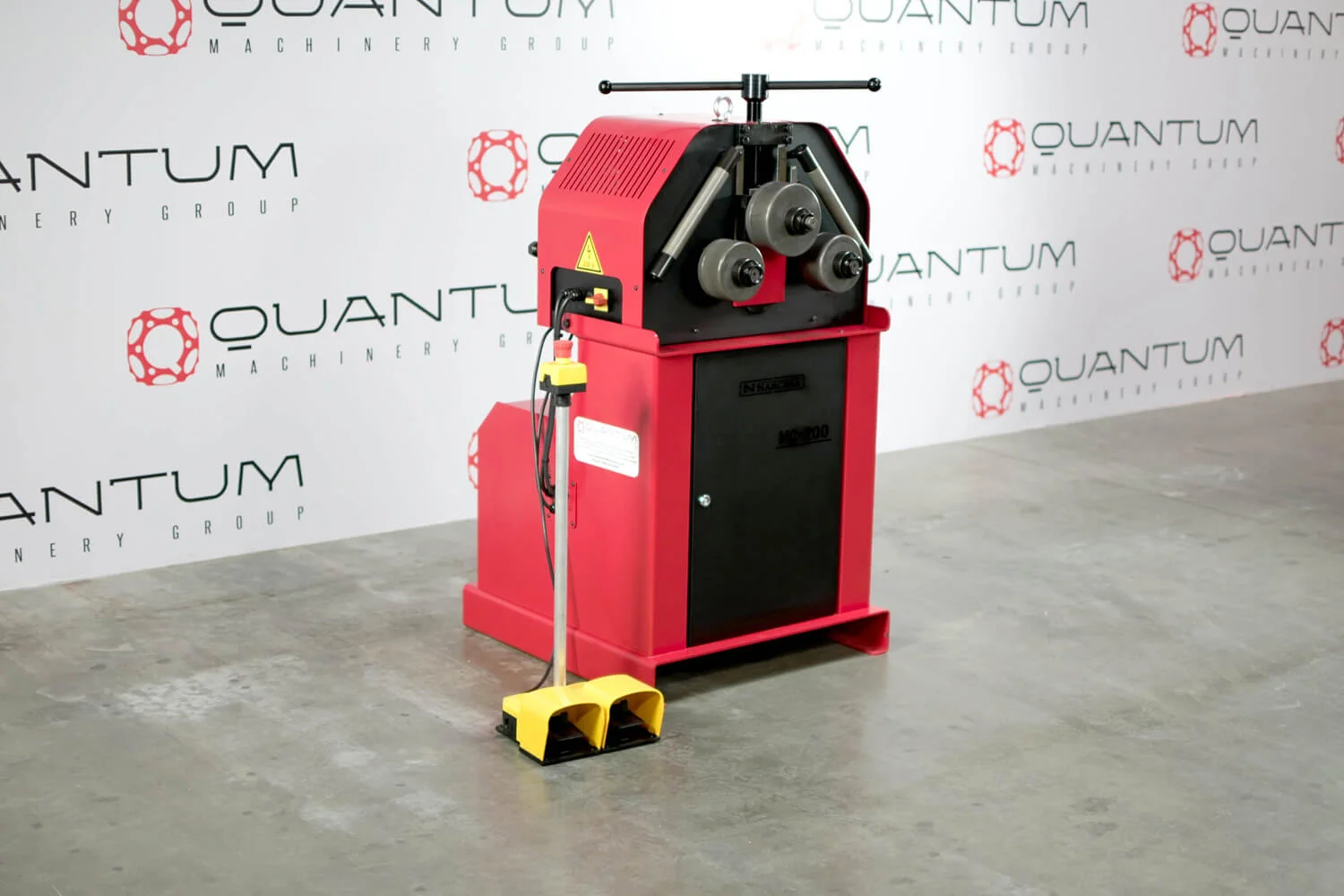

Section and pipe bending machine MC200 QUANTUM NARGESA. made of welded and mechanized steel sheet. Unlike the others, this one is not made of cast iron. Ideal for making flanges, greenhouses, balausters, tables, chairs, doors, windows... making a great number of circular shape in all kinds of profiles. Its robustness, axis diameter, reducer capacity and other features, make it one of the best bending machines in the market, within the category of two traction rollers. All products Nargesa are according to the European directives and regulations CE regarding manufacturing of industrial machinery. We supply the section bending machine MC200 with 9 rollers and standard washers, that can be combined and make all kinds of profiles. (Square pipe, rectangular, square bar, round and rectangular bars, U profile, T profile, angle, flat bar, edged bar ...) It is only for special round pipes when we need special rollers.
All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...
THE MC200 BENDING CAPACITIES:
Solid Round: 1.15" with a Minimum Radius of 6" Inches
Solid Square: 1.15" x 1.15" with a Minimum Radius of 8" Inches
C-Channel (Easy Way): 2.25" with a Minimum Radius of 12" Inches
C-Channel (Hard Way): 2.25" with a Minimum Radius of 12" Inches
T-Channel (Easy Way): 1.5" with a Minimum Radius of 8" Inches
Round Tube: 2.5" x .120" with a Minimum Radius of 20" Inches
Square Tube: 2" x 2" x .120" with a Minimum Radius of 28" Inches
Angle (Leg-Out): 1.5" with a Minimum Radius of 20" Inches
Flat Bar (Easy Way): 3.15" x 0.75" with a Minimum Radius of 6" Inches
Flat Bar (Hard Way): 2" x 0.39" with a Minimum Radius of 12" Inches
*Please Note - Minimum Radii shown may require multi-pass. The sizes shown above are the maximum capacity with minimum radii. Round Profiles and Special Profiles shown above will require dedicated tooling. When bending smaller sections, the machine will be able to bend very small radii.*
The MC200 Features and Specifications:
Rollers speed: 8 R.P.M.
Diameter of axes: 1.5"
Useful axes length: 2.9"
Weight of Machine: 750 lbs.
Dimensions: 32" x 28" x 52"
Motor Power: 1.1 KW / 1.5 HP
Base cupboard for rollers and accessories.
Center Distance between Lower Axes: 11.25"

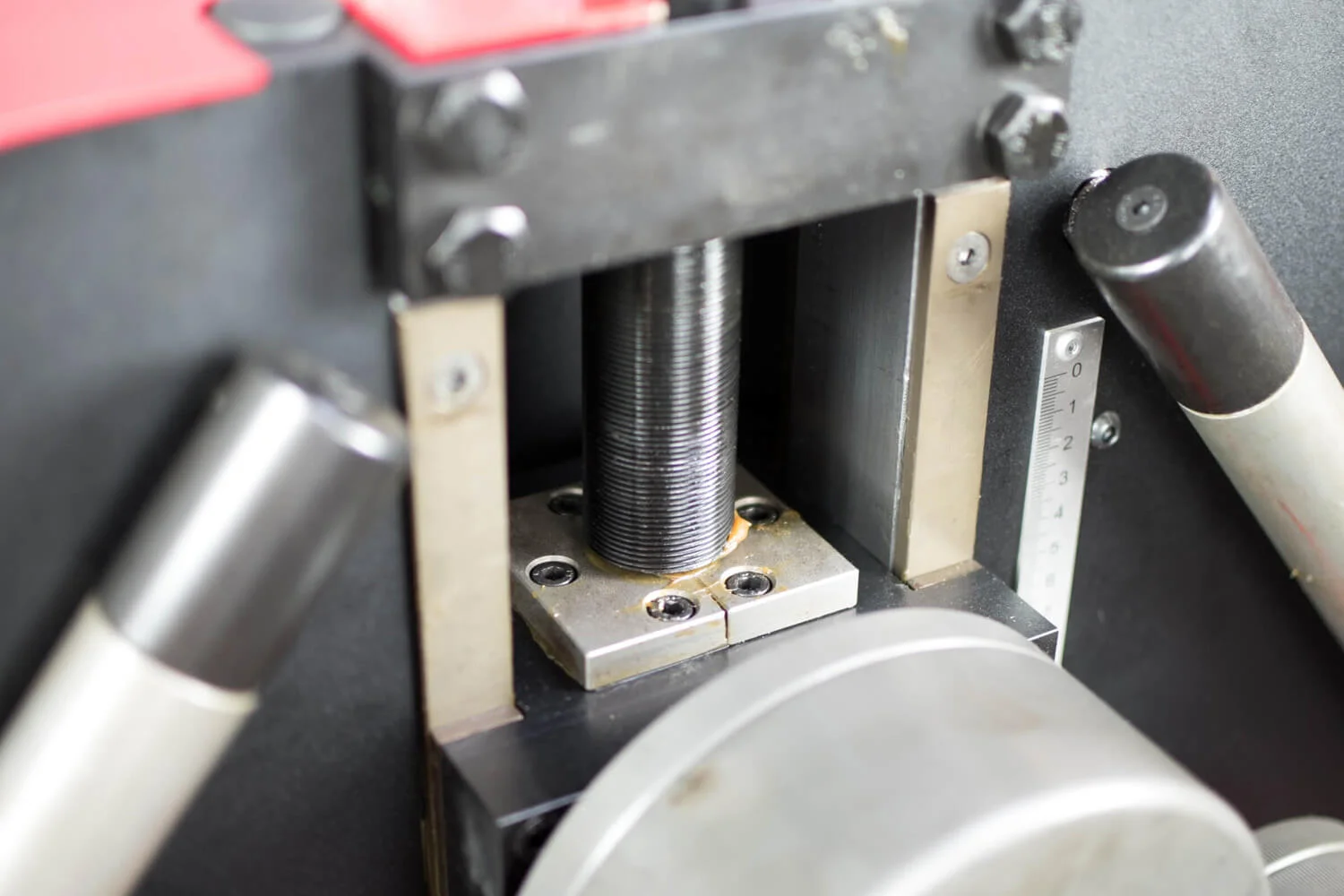

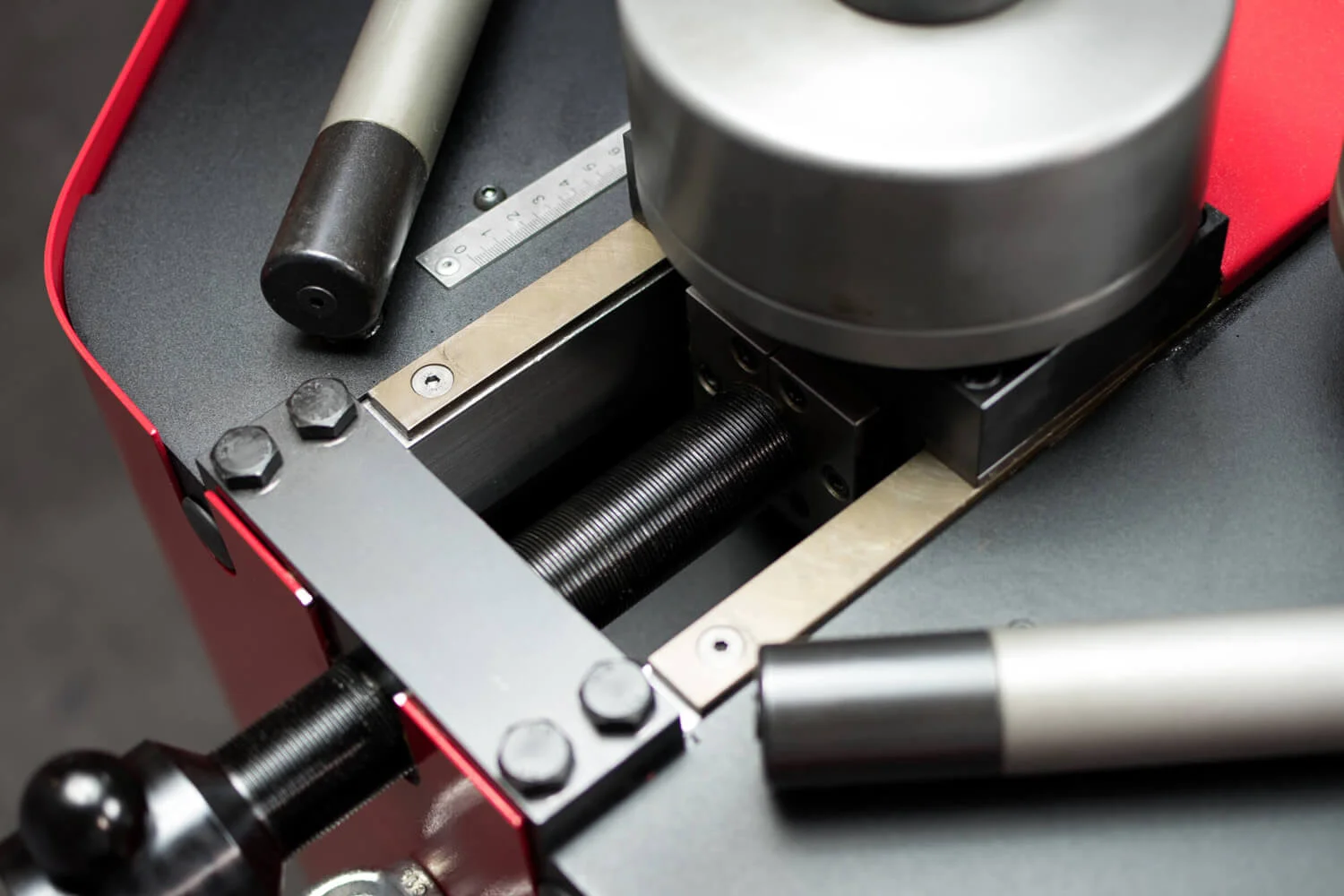

Millimeter scale for bending in the upper shaft.
Secure transmission by using flat hardened pinions.
Maximum Capacity for Bending Round Tube: 2.5" x .120" Wall

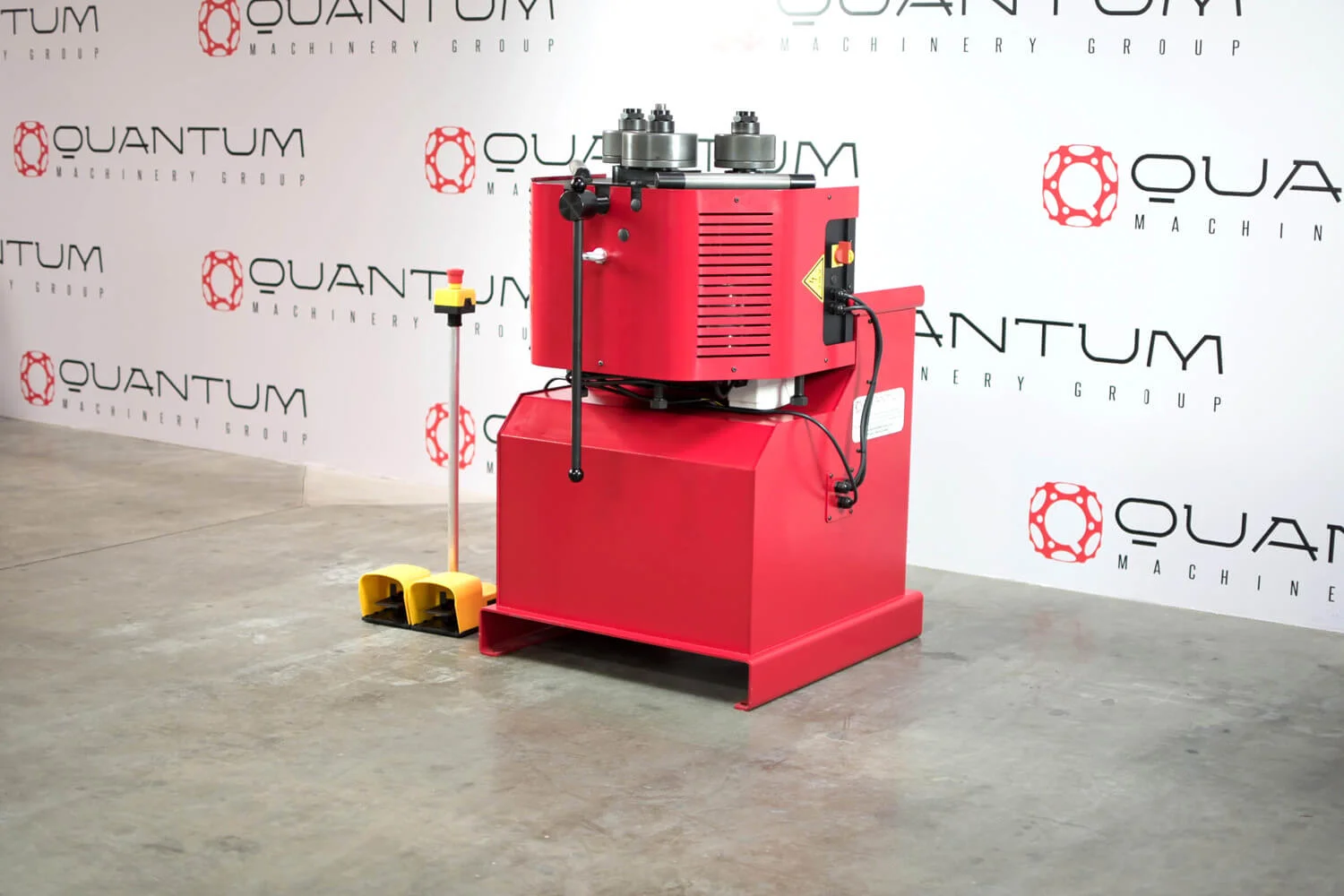

Two working positions, horizontal and vertical in the same workbench.

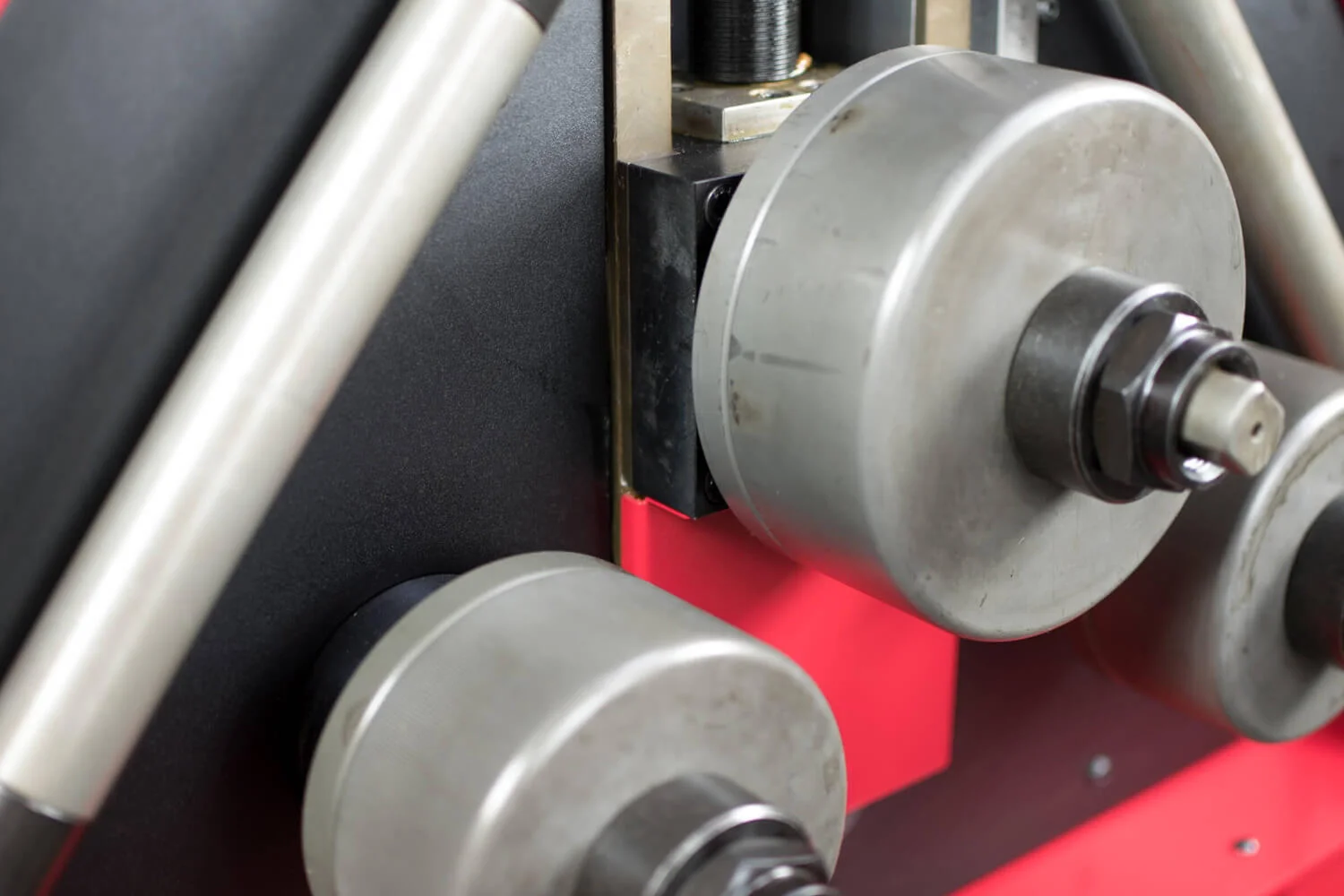

Two drive rollers. The two lower rollers are motorized and knurled for better grip.
Correction rollers on the sides to control the bending deformation when making spirals and spiral staircases.
Lower bench palletized to easily transport the machine to the workplace or store it in case of lacking space.
Bending regulation by the upper shaft, which allows to curve tube and profile dimensions and profiles of large diameter without deformation.
The machine is shipped fully assembled, you only need to supply your own power adapter and connect the machine to the power supply.
STANDARD TOOLING CONFIGURATION:

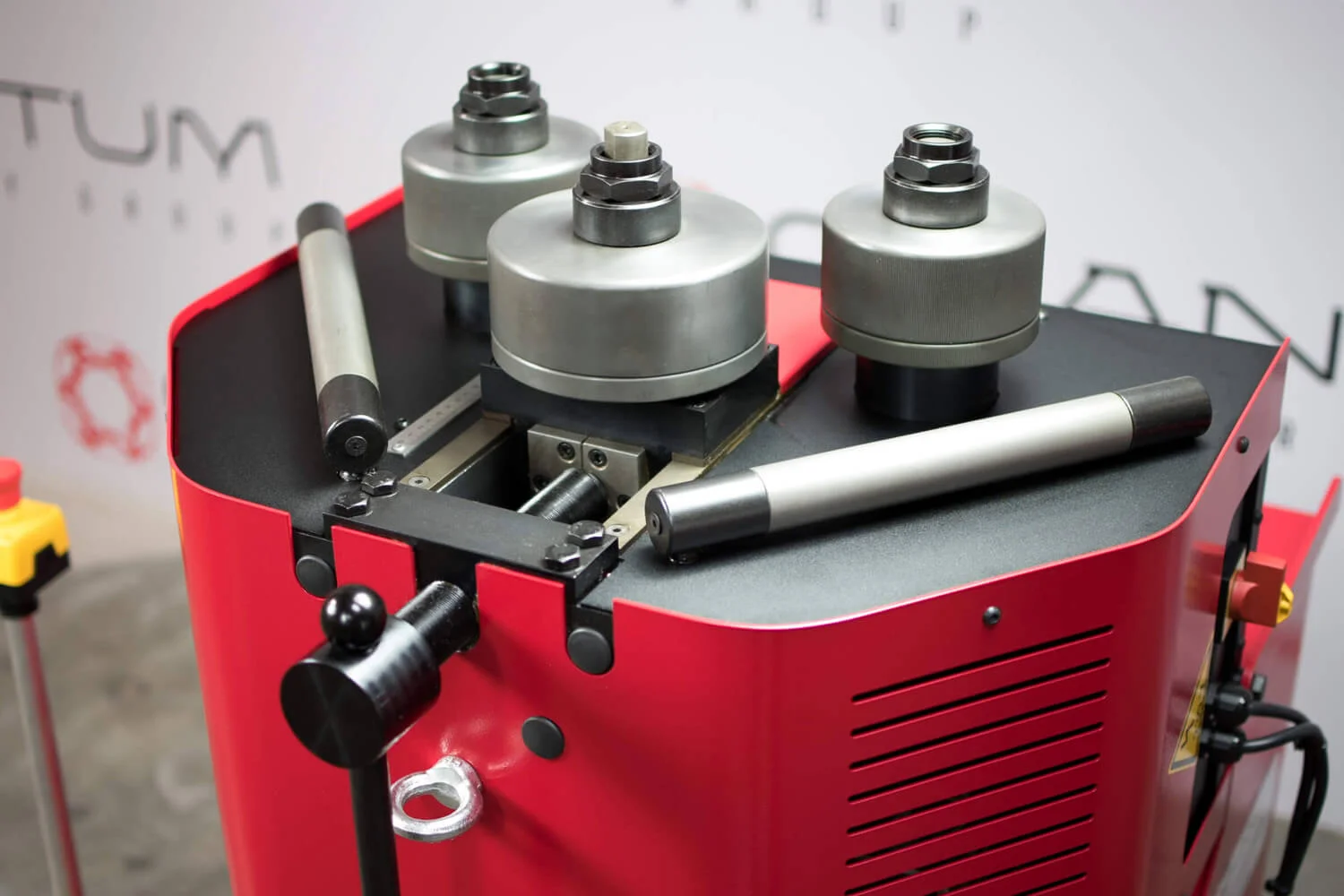

The MC-200 is equipped with 9 standard pieces, by means of which the user can work all kinds of profiles. Square, Rectangular Tube, Square Bars, C-Channel, T-Channel, Angle, Flat Bar, and Edged Flat Bar. Adjustable rollers, by washers with the size of profile which allows us to make bending to different profile sizes.
When the user has to bend any kind of profile at radius wider than 6.5 feet or if there are height problems in the facilities, it is really uncomfortable to work vertically. It will be enough with just bending the machine down so the bending operation is made horizontally with the help of a support or stands where we place the piece in order to obtain an acceptable job. For instance, when you need to bend arches for a greenhouse.
