PI85 HYDRAULIC LOCK PRESS

$9,365.00

Ready to place an order, or do you have any questions?
Call us at (704) 703-9400

Price: $9,508

Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz

Hydraulic press for locks QUANTUM NARGESA PI85, with a fast and accurate perforation for the casing, handle and lock hole in a tube. It's a state-of-the-art novelty in the world of locks. Patented by Nargesa in 2006, this machine makes us the leaders in the manufacturing of this kind of machine. They fit 85% of locks of all trademarks and models.

TECHNICAL FEATURES

  • Normally, one operative has an average time between 30 - 45 minutes to make one whole operation for a casing, handle holes and the lock hole in a square or rectangular tube. With the PI85 Nargesa the time gets reduced to less than one minute. This is a machine for high production.

  • The finish is perfect, with the proper tolerance to place the lock with no need to use a bezel. Thus the assembling time is minimum.

  • Many companies that have bought this press for locks PI85, not only for their own use but also to sell the ready-to-be-used tubes to other companies.

  • The tubes that can be used with the machine are 35x35, 40x40, 40x50, 40x60, 40x70, 40x80, 50x50, 50x60, 50x70 and 50x80.

  • Tube thickness can be 1,5mm and 2mm. No matter the material, it can either punch normal steel, galvanized steel or stainless steel.

  • It's important to bear in mind the casing must be always made in the side of 35, 40 or 50mm.

  • The perforation of the lock hole and the handle could be combined, it means we can punch a tube with lock and handle on both ends, as we can as well make either the handle or the lock in the other.

  • The casing length is adjustable as it is as well the entrance of the lock. It ranges from 18mm to 37mm.

Click Here to Pre-Order

Ready to place an order, or do you have any questions?
Call us at (704) 703-9400

Price: $9,508

Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz

Hydraulic press for locks QUANTUM NARGESA PI85, with a fast and accurate perforation for the casing, handle and lock hole in a tube. It's a state-of-the-art novelty in the world of locks. Patented by Nargesa in 2006, this machine makes us the leaders in the manufacturing of this kind of machine. They fit 85% of locks of all trademarks and models.

TECHNICAL FEATURES

  • Normally, one operative has an average time between 30 - 45 minutes to make one whole operation for a casing, handle holes and the lock hole in a square or rectangular tube. With the PI85 Nargesa the time gets reduced to less than one minute. This is a machine for high production.

  • The finish is perfect, with the proper tolerance to place the lock with no need to use a bezel. Thus the assembling time is minimum.

  • Many companies that have bought this press for locks PI85, not only for their own use but also to sell the ready-to-be-used tubes to other companies.

  • The tubes that can be used with the machine are 35x35, 40x40, 40x50, 40x60, 40x70, 40x80, 50x50, 50x60, 50x70 and 50x80.

  • Tube thickness can be 1,5mm and 2mm. No matter the material, it can either punch normal steel, galvanized steel or stainless steel.

  • It's important to bear in mind the casing must be always made in the side of 35, 40 or 50mm.

  • The perforation of the lock hole and the handle could be combined, it means we can punch a tube with lock and handle on both ends, as we can as well make either the handle or the lock in the other.

  • The casing length is adjustable as it is as well the entrance of the lock. It ranges from 18mm to 37mm.

Ready to place an order, or do you have any questions?
Call us at (704) 703-9400

Price: $9,508

Electrical Options:
- 220V / 3PH / 60Hz
- 480V / 3PH / 60Hz

Hydraulic press for locks QUANTUM NARGESA PI85, with a fast and accurate perforation for the casing, handle and lock hole in a tube. It's a state-of-the-art novelty in the world of locks. Patented by Nargesa in 2006, this machine makes us the leaders in the manufacturing of this kind of machine. They fit 85% of locks of all trademarks and models.

TECHNICAL FEATURES

  • Normally, one operative has an average time between 30 - 45 minutes to make one whole operation for a casing, handle holes and the lock hole in a square or rectangular tube. With the PI85 Nargesa the time gets reduced to less than one minute. This is a machine for high production.

  • The finish is perfect, with the proper tolerance to place the lock with no need to use a bezel. Thus the assembling time is minimum.

  • Many companies that have bought this press for locks PI85, not only for their own use but also to sell the ready-to-be-used tubes to other companies.

  • The tubes that can be used with the machine are 35x35, 40x40, 40x50, 40x60, 40x70, 40x80, 50x50, 50x60, 50x70 and 50x80.

  • Tube thickness can be 1,5mm and 2mm. No matter the material, it can either punch normal steel, galvanized steel or stainless steel.

  • It's important to bear in mind the casing must be always made in the side of 35, 40 or 50mm.

  • The perforation of the lock hole and the handle could be combined, it means we can punch a tube with lock and handle on both ends, as we can as well make either the handle or the lock in the other.

  • The casing length is adjustable as it is as well the entrance of the lock. It ranges from 18mm to 37mm.




Characteristics of the Pi85 Hydraulic Lock Press

  • Hydraulic punching system.

  • Safety pedal.

  • Operation time 58 seconds (approximately).

  • Type of keyhole: Bombin.

  • Type of material: M.S., S.S., Galvanized steel...

  • Pipe Thickness: 1.5mm and 2mm

  • Adjustable casing length.

  • Adjustable lock entrance from 18mm to 37mm

  • PI 85 distance between axis 85mm

  • Motor power: 0,75 KW / 1HP.

  • 3-phased tension: 230/400V.


OPTIONAL TOOLING FOR HYDRAULIC PRESS FOR LOCKS PI85

Tooling for 35X35 Pipe. Wall Thickness 1,5mm


TOOLING FOR 35X35mm
REF: 140-07-01-00001
PIPE: 35x35mm
THICKNESS: 1,5mm
PIECES PER DIE: 3 Units.
WEIGHT: 5 kg.



Tooling for 40x40mm Pipe up to 40x80mm. Wall Thickness: 1,5mm

tooling-for-40x40mm-pipe-up-to-40x80mm-wall-thickness-1-5mm-1407253717--tool-771-1407253717.png

TOOLING FOR 40X40mm
REF: 140-07-01-00003
PIPE: 40x40mm, 40x50mm, 40x60mm, 40x70mm, 40x80mm.
THICKNESS: 1,5mm
PIECES PER DIE: 8 Units.
WEIGHT: 5,3 kg.



Tooling for 40x40mm Pipe up to 40x80mm. Wall Thickness: 2mm


TOOLING FOR 40X40mm
REF: 140-07-01-00004
PIPE: 40x40mm, 40x50mm, 40x60mm, 40x70mm, 40x80mm.
THICKNESS: 2mm
PIECES PER DIE: 8 Units.
WEIGHT: 5,3 kg.



Tooling for 50x50mm Pipe up to 50x80mm. Wall Thickness: 1,5mm


TOOLING FOR 50X50mm
REF:
 140-07-01-00005
PIPE: 50x50mm, 50x60mm, 50x70mm, 50x80mm.
THICKNESS: 1,5mm
PIECE PER DIE: 7 Units.
WEIGHT: 5,5 kg.



Tooling for 50x50mm pipe up to 50x80mm. Wall thickness: 2mm

TOOLING FOR 50X50mm
REF: 140-07-01-00006
PIPE: 50x50mm, 50x60mm, 50x70mm, 50x80mm.
THICKNESS: 2mm
PIECES PER DIE: 7 Units.
WEIGHT: 5,5 kg.






INFO HYDRAULIC PRESS FOR LOCKS PI85

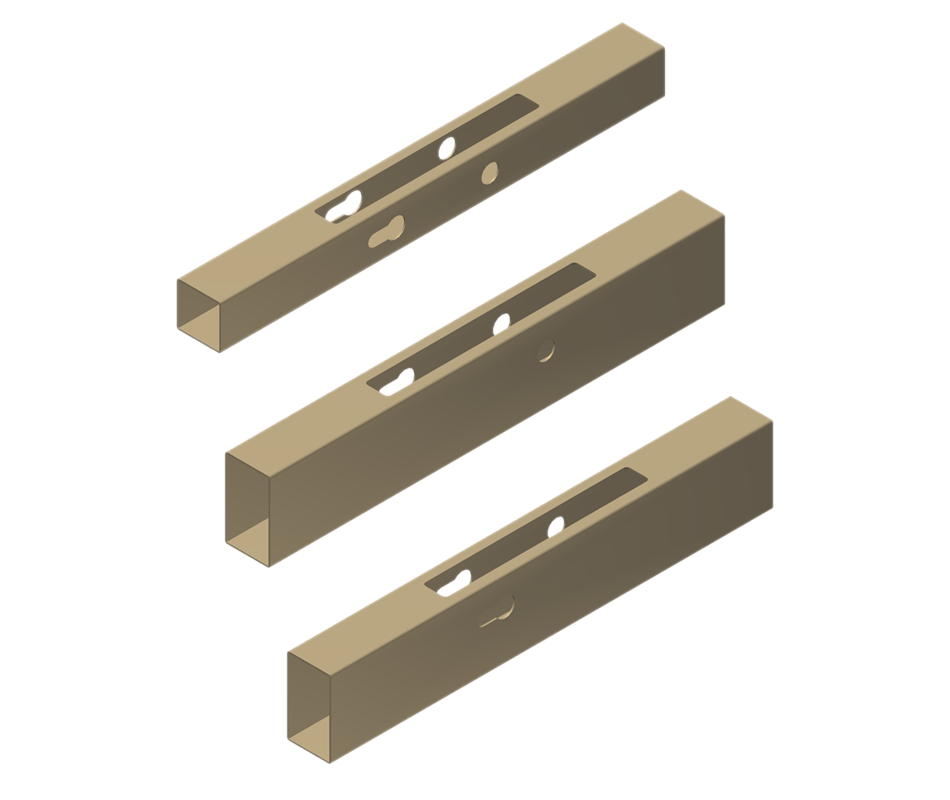

The Hydraulic Press for Locks Nargesa allows making different kinds of punching operations:

  • Punching for mechanism entrance, the lock and handle to both sides.

  • Punching for mechanism entrance, the lock and handle in only one side.

  • Punching for mechanism entrance, the lock with no handle.

The types of punching are applicable to all the pipes the machine can work with: 35x35 / 40x40 / 40x50 / 40x60 / 40x70 / 40x80 / 50x50 / 50x60 / 50x70 / 50x80



DIMENSIONS OF THE MACHINE HYDRAULIC PRESS FOR LOCKS PI85

Dimensions of the machine: 1500x570x1470 mm.

Weight: 200 Kg.

Tariff Item Code:  84623991


USES OF THE MACHINE: HYDRAULIC PRESS FOR LOCKS PI85

Hydraulic Press for locks PI85 es thought to make a fast and precise punching for lock casings in a pipe. In just 58 seconds you will obtain the whole operation: the lock casing, the keyhole and the handle. Its design makes it a machine easy to move to the working site. It is suitable for 85% of locks in the market. It's a very easy to use machine.
